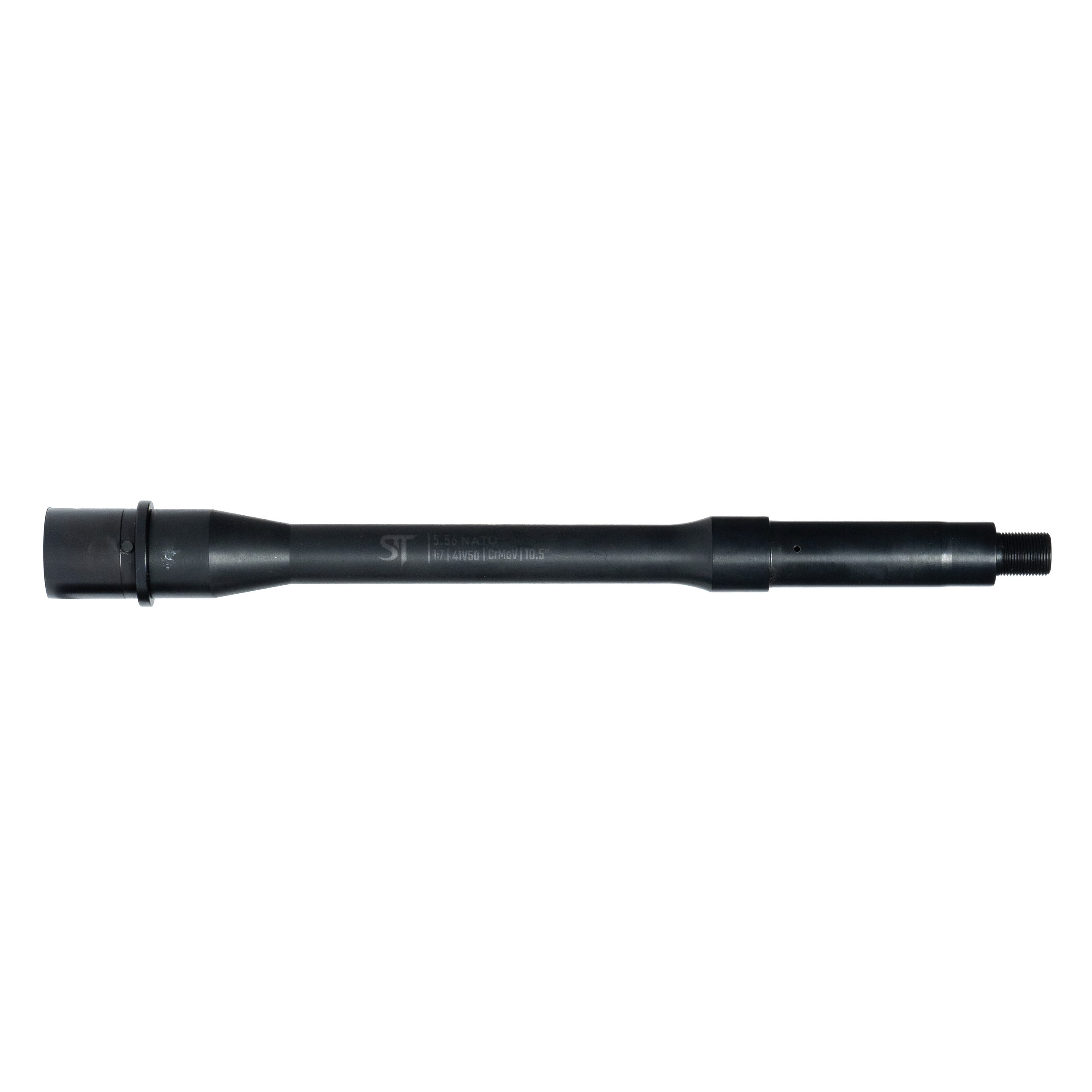

AR-15 5.56mm 1:7 Barrel – Carbine Length 10.5″
STT’s AR15 barrels are made from 4150 Chrome Moly Vanadium, coated in H&M Blacknitride+™ for increased wear resistance, chambered in 5.56 NATO ammo.
STT incorporated input received from military, law enforcement and civilian shooters into the engineering of their AR15 barrels to accommodate modern-day shooting requirements. Every barrel is precision, instrument-inspected for absolute straightness and air gauged for maximum uniformity, yielding the highest accuracy possible. Land and groove tolerance from breech to muzzle can vary only .0001″ for the best concentricity.
With a carbine length gas system, M4 feed ramps for reliability, a 1:7″ twist rate, 1/2″x28 thread pattern to fit standard AR-15 muzzle devices, 11-degree match crown for increased accuracy and a bottom dimple is added for easy install and alignment of gas blocks.
STT AR15 barrels are then coated in H&M Blacknitride+™ or Ferritic Nitrocarburizing, resulting in significantly improved surface properties on ferrous metal parts while maintaining dimensional and shape stability. H&M Blacknitride+™ yields increased wear resistance, improved fatigue strength, better corrosion resistance, improved lubricity, and enhanced cosmetic appeal.
Technical Specs:
Barrel Length: 10.5″
Barrel Profile: SOCOM
Barrel Material: 4150 Chrome Moly Vanadium
Barrel Type: Button Rifled
Barrel Coating: H&M Blacknitride+™
Barrel Caliber: 5.56mm
Barrel Gas System: Carbine
Barrel Twist: 1:7
Barrel Extension: M4 Type Feed Ramps
Gas Block Diameter: .750″
Gas Block Journal Length: 1.13″

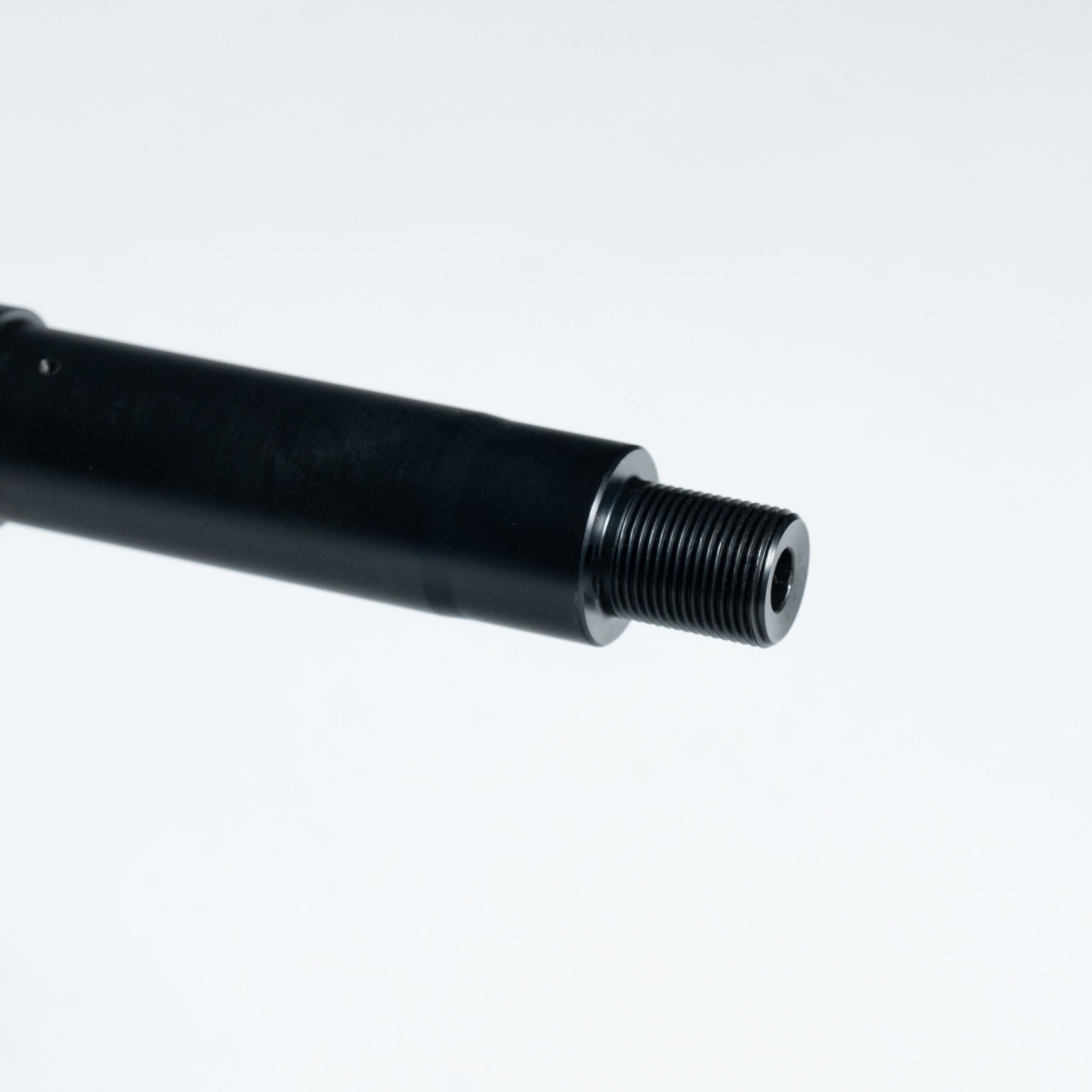

Muzzle Thread: 1/2-28 TPI
Air Gauged
Weight: 1.3 lbs
All NFA/ATF Rules Apply
